IPG Laser Source 10000W Stainless Steel Cutting Metal Laser Cutting Machine
Bolt Series is Penta's high end series for customers that demands extremely high performance and efficiency.
Penta Laser obedience to the operation philosophy of to be the application expert and creat value for clients, who developed a batch of international advanced laser processing equipment. In 2017, we successfully initial the China 10000W super high power fiber laser cutting machine, which can cut the stainless steel and aluminum with 30mm, and fill up the demestic market blank.
Penta Laser insist the quality principle of carefulness, perseverance, High-quality, innovation and faith. We take the innovation as our guide, the quality as our life and the service as our obligation. In the smart manufacture epoch, lookiing forward to leading the laser application technology revolution together with you!
With years of experience as a laser machine manufacturer, PENTA LASER has cemented its position as the world market leader in industrial high power laser cutting machinery.
Features
- IPG TRUMPF RAYCUS Laser Source 1kw to 12kw at your choice
- Double servo motor driven synchronously, bring higher speed and acceleration
- Double driving synchonous technology make sure high speed and precision cutting
- Auto Focus Cutting Head dedicated for high power (Precitec)
- Dedicated laser CNC that makes the best and most of the laser
- Fast pallet exchanger and full enclosure
- Handy embedded cutting database
Technical Specification
| Model | BOLT 6025 |
| Rate output power | 10000 W |
| Rapid Speed | 180 m/min |
| Maximum Acceleration | 2.2 G |
| Accuracy | ±0.03 mm/m |
| Mechanical Repeatability | ±0.01 mm/m |
| Maximum cutting thickness of mild steel | 25 mm |
| Maximum cutting thickness of stainless steel | 30 mm |
| Working Table | 6000 mm ×2500 mm |
Advantages
Stable Mainframe
The base consists of foundation, working table, beam,slider, ram, cooling system,pneumatic system,
suction system,dross cleaner, enclosure and so on.
Imported Operating System Smart Manager
Smart Manager is originally imported from Europe. This software is based on the Windows
XP system and can fully interface with Italy CNC system which original imported. Therefore the real control of the machine, the laser source and software update is more convenient and fast.
Efficient Control System
New Z32 real time CNC system, with dynamic and geometric JERK control. The date exchange between CNC system and machine drive system is adopted with fiber and power modulation for the ultimate cutting quality in the corners
Imported nesting software function
Based on AUTO CAD/CAM automatic program nesting software and easy to use, Multilayer nesting function to intensively increase the sheet usage rate
Pre-perforation System
Accomplish the pre-perforation as settled

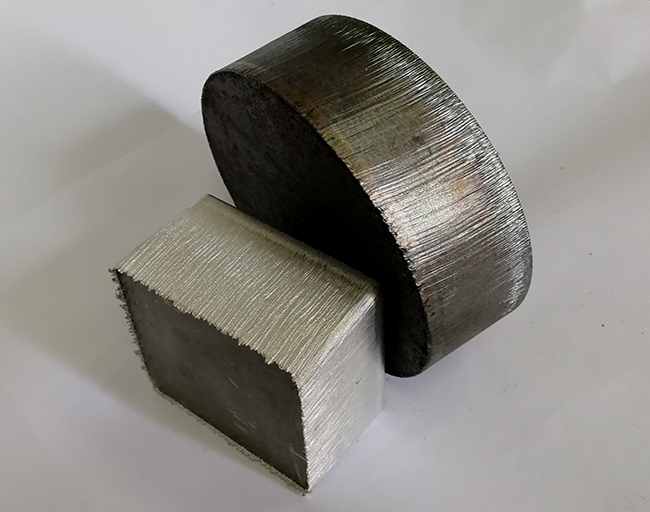

Samples
